Engine |
IVECO Cursor 9 |
---|---|
Rated speed (r / min.) |
2100 |
Min. Horsepower (kWt / h.p.) |
300 |
Max. Horsepower (kWt / h.p.) |
333 |
Fuel tank capacity, L |
580 |
Air compressor |
standart |
Clean fuel filter Separ |
standart |
Reaper VariFeed |
|
Width, m |
7,3 |
Sistem Autoflot (copying the soil) |
Standart |
Reel drive |
hydraulic |
Drum |
|
Diameter threshing drum, mm |
607 |
Width of the threshing drum, mm |
1 560 |
Speed range, r / min |
400-1140 |
Concave |
|
Number of rubbing plates |
14 |
Extended coverage angle (degrees) |
121 |
Area, m2 |
1,04 |
Gap adjustment |
remotely from the cab |
Beater (round) |
|
Diameter, m |
0,395 |
Area, m2 |
0,342 |
Rotary separator |
|
Diameter, mm |
590 |
Area, m2 |
1,01 |
Total area of separation zone, m2 |
2,39 |
Sistem Opti-Tresh |
standart |
Sistem Multi-Tresh |
standart |
Straw Rack |
|
Quantity of racks, pieces. |
6 |
Separation area, m2 |
6,45 |
Total cleaning area, m2 |
5,21 |
Cleaning Fan |
|
Quantity of blades, pieces. |
6 |
Speed range, r / min. |
400 – 1000 |
Cab |
|
Air conditioning |
standart |
Grain tank | |
Grain tank volume, liters |
9300 |
Discharge performance, L / Sec |
100 |
Dimensions and weight |
|
Overall height , m |
3,99 |
Width without header, m |
3,50 |
Maximum length, m |
8,76 |
Weight without header, kg |
11 400 |

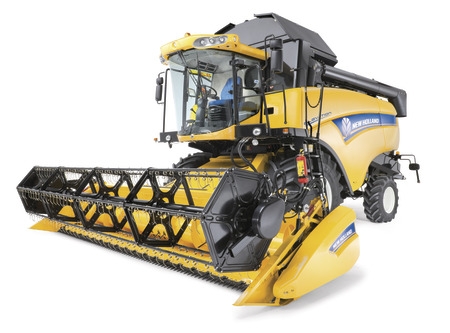

Combine harvesters NEW HOLLAND CX 6090 at any harvesting conditions demonstrate high reliability and performance, technical excellence and caring threshing. Combines design apply high performance thrashing scheme that provides the lowest loss, fragmentation and debris. Combine harvesters NEW HOLLAND are neat and very effective, with the highest performance. Thrash and separate. Combines design CX series based on four-drum technology HarveStar (drum, beater, rotary separator, beater). Large drum diameter and elongated concave provide consistent quality process of threshing and separation.Multi-Thresh System lets you change the distance between the rotating rotary separator and its concave providing adaptation of machine for harvesting of different types of crops. Straw Flow beater splits and changes the direction of the grain mass, providing additional separation of grain from the straw. With Opti-Thresh system you can achieve high quality of thrashing, even when working on cultures with delicate straw. By the way, this system reduces the quantity of short fragments of stems on sieves, thus accelerating the cleansing process. Straw shaker : 6 keys straw shaker (5 degrees) area 6.45 sq. m. Length of the key straw shaker – 3.45 M. Big roomy cabin of New Holland combines CX series equipped with air conditioning, heating, adjustable steering column and comfortable operator's seat. In order to work at night combine harvesters are equipped with high-quality lighting equipment. Combines are equipped with engines IVECO CURSOR 9 with air intercooler, power 300 hp. These engines are highly fuel economy, with good torque stock increased by 25% when changing speed of 300 rev / min. Grain tank with 9300 liters makes discharging with speed 100 liters per second. Combine construction allows you to combine lay straw in the swath or chop and scatter it evenly across the whole width of header cut.Cooling system is equipped with self-cleaning rotary dust screen and forced air supply prevents dust accumulation on the radiator grille.
